Model Q6 – Entry-Level High Quality
Core Specifications
| Item | Details |
| **Profile Configuration** | Jiangsu Xinhongding Aluminum |
| **Profile Wall Thickness** | Main frame: 2.0mm, AB surface: 2.5mm (National Standard) |
| **Powder Coating** | Guangdong Qianjiang Powder |
| **Thermal Break Strip** | Xinbaotai PA66-GF35 |
| **Equal Pressure Seal Strip** | Hebei Tianshang Integrated Vulcanized Welded Strip |

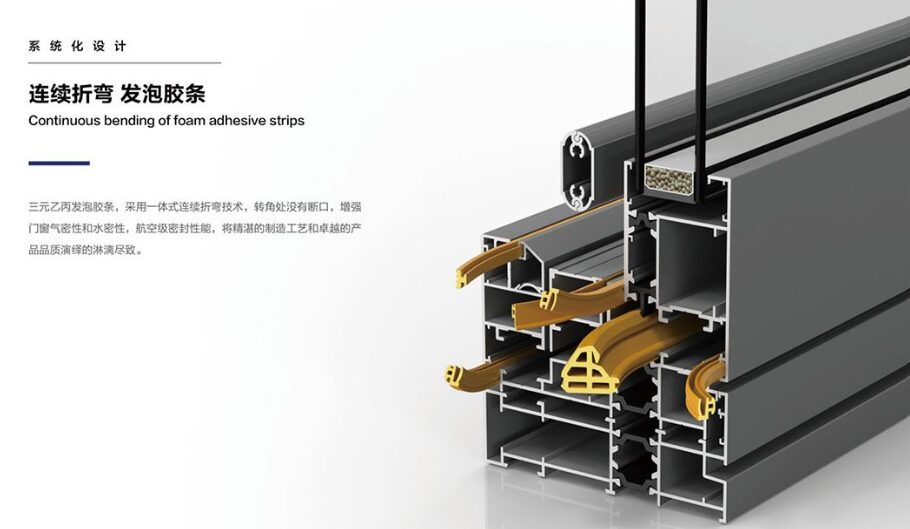

| **Sealing Strip** | Baimusen Customized Hebei Junhe三元乙丙Composite Foam Strip |
| **Drainage System** | Tesla Multi-chamber Drainage Cap |
| **Screen Mesh** | 16-mesh 30-wire High-transparency Mesh |
| **Glass Groove** | Double glass 38mm / Triple glass 48mm |
| **Section Adhesive** | Bosibang |
| **Two-component Adhesive** | Weijiagu |
Key Features
2.0mm main frame + 2.5mm AB surface, far exceeding national standard
2CM glass groove depth, stable and non-slip for double/triple glass
Optional built-in screen with guardrail design, safe for kids and elders
Ultra-narrow design, 30% higher light transmittance, 68% smaller mullion size
Grade 6 highest water tightness, Grade 7 wind pressure resistance
